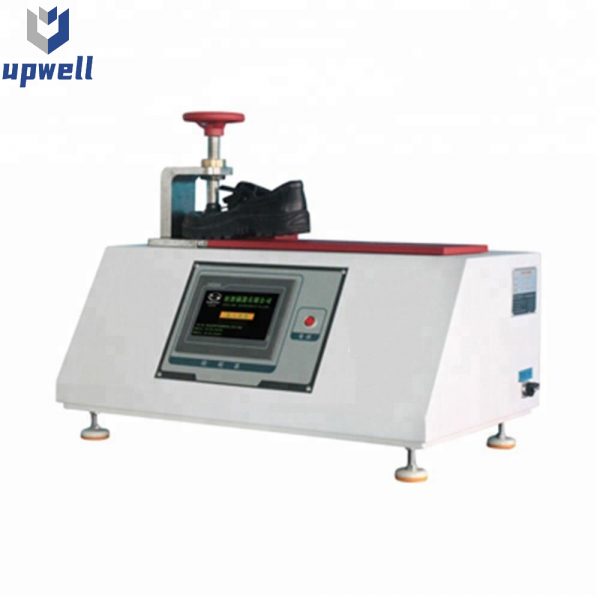

EN ISO 20344 Shoe Sole Flexing Resistance Tester
EN ISO 20344 Whole Shoe Sole Flexing Resistance Tester  is used to determine the flexing angle of whole shoe under a specific load. Â
Related Testing Standard:EN ISO 20344
- Description
- Inquiry
EN ISO 20344 Whole Shoe Sole Flexing Resistance Tester  is used to determine the flexing angle of whole shoe under a specific load. Â
Shoe Sole Flexing Resistance Tester Parameter:
| Load cell capacity | 500N |
| Force resolution | 1/100000 |
| Test speed | 100±10mm/min, adjustable |
| Flexing position | 1/3 of shoe |
| Angle resolution | 0.1° |
| Test method | Angle at specific force or force at specific angle |
| Power supply | AC220V 50Hz |
| Dimensions | 750×450×650mm |
| Weight | 55kg |
Â
