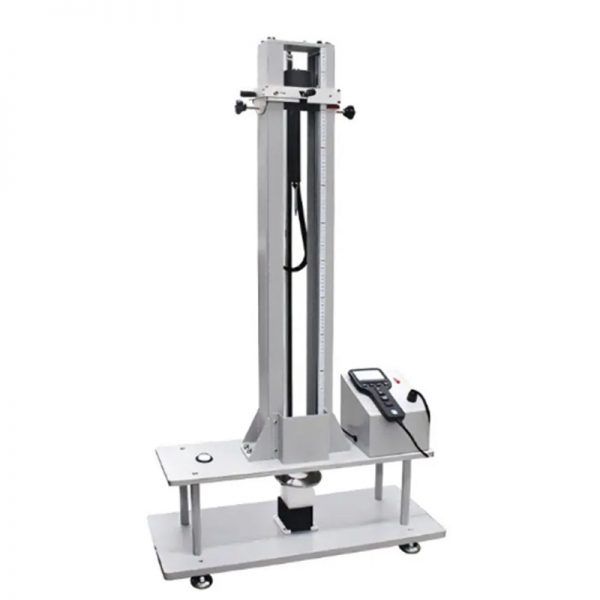

EN412 EN1082-3 EN ISO 13998 GLOVE CUT AND PUNCTURE IMPACT CUTTING TESTER
- Description
- Inquiry
Introduction:
Glove Cut and Puncture Impact Cutting Tester For testing the impact of leather or fabric gloves or materials through a standard blade fixed in a downward block on a guide rail.
Comply Standards: EN412, EN1082-3, EN ISO 13998:2003
Technical Parameters:
Impact Weight: (110卤5)g, 1000g
Impact Energy: 0.65J, 1.47J, 2.45J, 4.9J
Impact Height: 600mm, 150mm
Circular Metal Drill: Diameter 50卤1mm
Drill Height: 60mm
Drill Curvature Radius: 200卤5mm
Standard Cotton Woven Fabric
Test Blade: Not less than 60mm
Test Guide Width: 20卤0.5mm
Test Guide Thickness: 1.5卤0.05mm
Related Products
Fully Automatic Single Yarn Strength Tester
Fully Automatic Single Yarn Strength Tester聽
Load Cell Capacity锛毬0-3000CN, 0-5000CN, 0-12000CN
Gauge length: 250mm卤1mm 聽 500mm卤1mm
Semi-automatic digital yarn tensile testing machine
Semi Automatic Automatic Single Yarn Strength Tester聽
Load Cell Capacity锛50N,500N
Gauge length: 250mm卤1mm 聽 500mm卤1mm

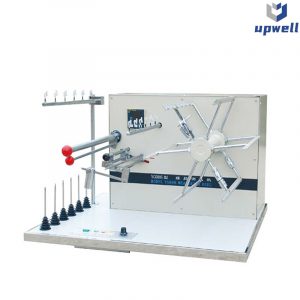

Yarn Wrap Reel Tester
Yarn Wrap Reel Tester
Testing Standard锛毬營SO2060, ASTM D1907, DIN53830.3.4
JBW-B Computer Display Pendulum Charpy Impact Tester
- Control Type:Fully Computer Control聽
- Impact energy聽(J) :300J,500J,600J,750J
- Testing standard:ASTM E23, ISO148-2006聽and GB/T3038-2002, GB/229-2007.
- Charpy Impact Testing Machine聽
Acceleration Mechanical Shock Test Machine/Acceleration Impact Testing Machine
Acceleration Mechanical Shock Test Machine/Acceleration Impact Testing Machine聽聽It is mainly used in the research and production of aerospace, aviation, ships, weapons, electronics, automobiles and other industrial fields to assess the impact resistance of products. It is suitable for testing the impact test of devices, components and complete machines with large impact acceleration. IS is a fully automatic mechanical shock test system, used to measure and determine the impact resistance of products or packaging. IS can perform conventional half-sine wave, square wave, sawtooth wave and other waveform impact tests to realize the product in the actual environment. Suffered shock wave and shock energy, so as to improve the system or optimize the product packaging structure
Electronic Yarn Tension Meter
Electronic Yarn Tension Meter
ISO 180 ISO 179 ASTM D256 Full Automatic Sample V Notch Cutting Cutter Machine
The plastic electric notch broaching machine is a sample preparation device for the notched sample used in the impact toughness test of the non-metallic material by the cantilever beam and the simply supported beam type impact tester.

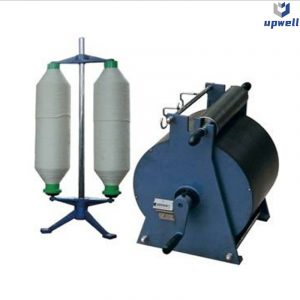

Sliver and Roving Length Meter
Sliver and Roving Length Meter
Cylinder聽Girth:1000mm卤1mm
Count聽Range:99999m

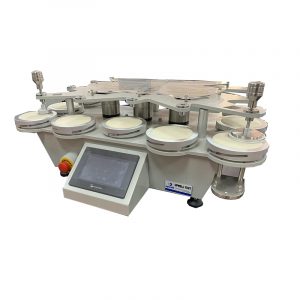

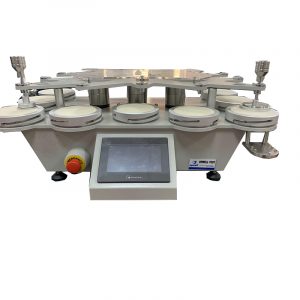

Martindale Fabric Abrasion Tester
