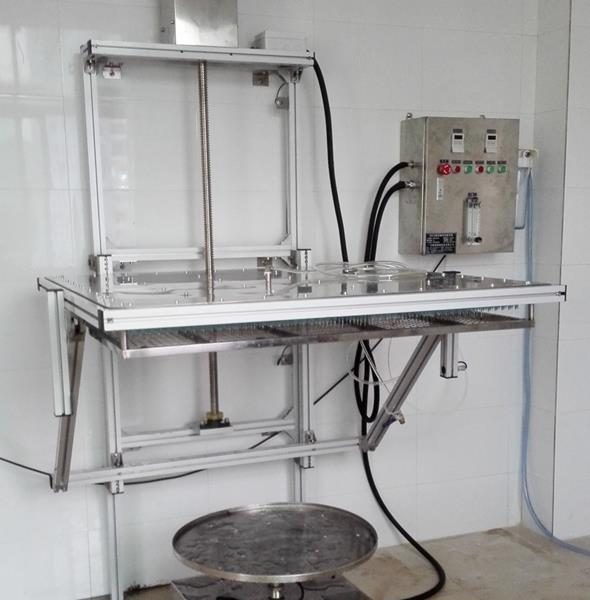

IEC60529 IPX1 IPX2 Rain Vertical Drip Tester

Introduction

It is suitable for IPX1 and IPX2 testing of products.

IPX1 means to prevent the intrusion of dripping water. Vertical dripping water (such as condensed water) will not cause harmful effects on the appliance; IPX2 means that dripping water can still be prevented from intruding when tilted at 15°, and the dripping water will not cause harmful effects on the appliance.

The IPX1 vertical dripping test is to place the sample on a rotating sample table at 1r/min according to the normal working position of the sample, the distance from the top of the sample to the drip opening is not more than 200mm, and the dripping volume is 1-1.5 mm/min; test duration: 10 min.

The IPX2 inclined 15° dripping test is to make one surface of the sample at a 15° angle to the vertical, and the distance from the top of the sample to the drip opening is not more than 200mm. After each test, change the other surface for a total of four times; It is 3-3.5 mm/min; test duration: 4×2.5 min (10 min in total).

Test Standard

It is manufactured according to the standards of IPX1\2 test requirements specified in IEC60529,  and other standards.

Application

The main function of the equipment is to test the performance of the product in storage, transportation and use in a rainy climate. The equipment is mainly used for electronic and electrical products, lamps, electrical cabinets, electrical components, automobiles, motorcycles and other components. Components and other products are tested on the physical and other related properties of the product under simulated rainy weather conditions. After the test, the performance of the product is determined through verification to meet the requirements for product design, improvement, verification and factory inspection. .

Feature:

1. The equipment rack and sample turntable are all made of high-quality aluminum alloy models and SUS304# stainless steel plates to ensure that they will not rust after long-term use.
2. The electrical part of the turntable is fully sealed to prevent water leakage.
3. The drip tank adopts vacuum design and high anti-rust stainless steel structure.
4. The brass taper design of the nozzle contact position is convenient for timely installation and replacement of the needle.
5. The rainfall device can be raised and lowered automatically. The nozzle is located at 200mm of the highest point of the object to be tested, and is equipped with a protection device to prevent it from falling down quickly. The lifting stroke can also be manually operated.
6. 6. Driven by imported electric lifting motor, stainless steel screw rod, pulley guide rail and lock nut lifting device.
7. 7. Rainfall: 1mm/Min, 3mm/Min user self-set parameters (error: +0.5mm/min).
8. 9. Machine structure: wall-mounted structure, the drip tray runs smoothly up and down.
