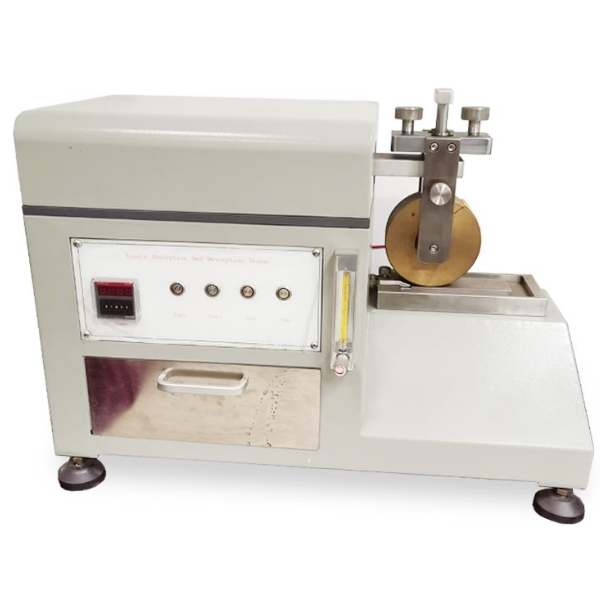

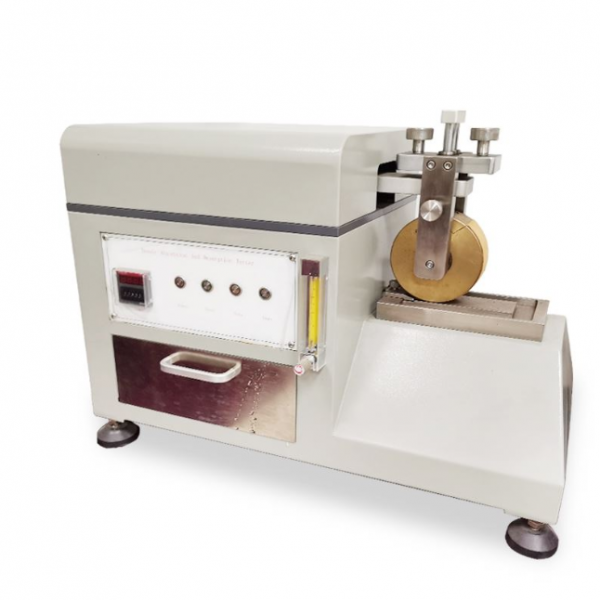

ISO 22649 ISO 20344 ISO 5404 INSOLE WATER ABSORPTION AND DESORPTION TESTER

Instrument Introduction:

After weighing and measuring the area, the instep is placed on a platform soaked in a gentle stream of water. The instep is then pressed against a roller and repeatedly bent. After a set period of time, the instep is weighed again to measure its water absorption. The instep is then hung in a standard environment for 24 hours and weighed again. The ratio of the amount of water volatilized after absorption to the amount of water absorbed is the water absorption index of the midsole material.

Standards:

ISO 22649, EN ISO 20344, ISO 5404, SATRA TM220, BS 3144

Main Functions:

Tests the water absorption and desorption properties of shoe insoles and insoles.

Features:

• Surface Treatment: Electrostatically spray-painted using American DuPont powder, cured at 200°C for long-lasting colorfastness.
• Mechanical components constructed of non-corrosive structural copper and stainless steel.
• Metal LED buttons: waterproof, durable, and easy on the eyes.
• Stainless steel water tank with automatic water return function.
• All-copper roller: corrosion-resistant, stainless steel outlet: uniform water flow.
• High-precision water flow meter: stable control.

Technical Specifications:

1. Capacity: 1000g
2. Horizontal amplitude: 50±1mm.
3. Drum diameter: ￠120±1mm
4. Speed: 20±1 strokes/min.
5. Drum travel: 50±2mm
6. Load: 80±5N.
7. Water flow: (7.5±2.5)mL/min
8. Power supply: AC 220V, 10A.
9. Weight: 60kg.
