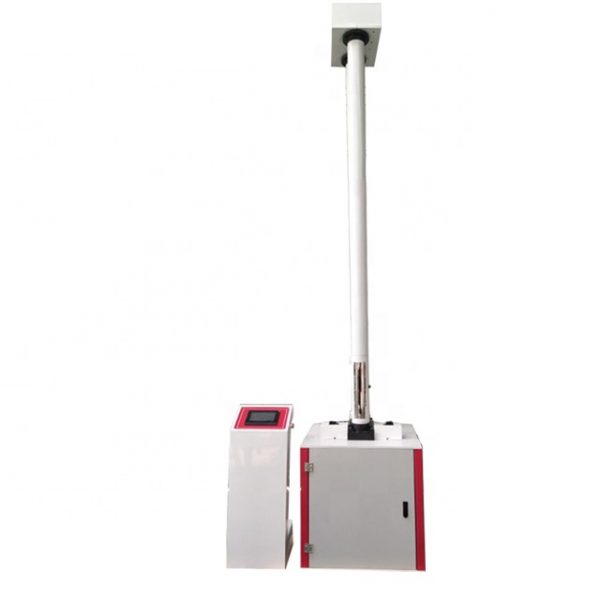

ISO 3127 Digital Automatically PVC Pipe Falling Hammer Impact Tester

Digital Automatically PVC Pipe Falling Hammer Impact Tester    applicable to PVC-U, PVC-C pipe, PP pipe, PE pipe, underground communication pipe and other pipe, to the determination of impact toughness resistance. It is an ideal test equipment of the detection production units, building materials industry, scientific research units.

Features:

The test machine has to prevent the secondary impact function, AC servo system, hammer speed fast, good positioning accuracy, high test efficiency, small air resistance, can automatically measure the height, drop hammer height can be set arbitrarily, hammer height automatic calibration, impact hammer weight can be assembled by weight, anti-secondary impact device capture rate of 100%, V-shaped iron to adjust to adapt to different diameter of the sample, the hammer falling free movement, according to the requirements.

Standards ZB N72 026 ISO 3127 GB / T 18477 ISO4422

Technical Parameters:

1) Working environment temperature 10 ℃ ~ 35 ℃
2) Hammer maximum lifting impact height 2000mm
3) Hammer maximum lifting speed: 12m / min
4) Impact hammer drop speed: 9.81m / s2
5) Displacement measurement resolution 1mm
6) Height error ± 2mm
7) Maximum pipe diameter φ450mm φ630mm
8) Maximum impact height 2000mm
9) Hammer mass 0.25kg ~ 15kg each 0.25kg increase
10) Hammer specifications R5, R10, R30, D25, D90
11) Height positioning error ± 2mm
12) Maximum impact energy 300J
13) Power AC 220 ± 10% 50Hz 0.5kW
14) Dimensions 900 × 650 × 3600mm, 900 × 900 × 3840mm
15) Machine weight 280Kg, 340Kg
