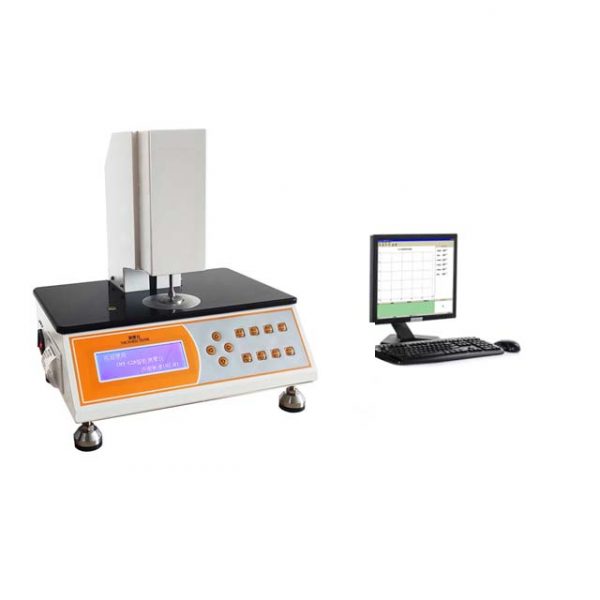

Paper Film Thickness Measuring Gauge

Laboratory High Precision Paper Film Thickness Measuring Instrument Gauge designed based on mechanical contacting method, which effectively ensures standard and accurate test data and is applicable to thickness test of plastic films, sheets, diaphragms, paper, foils, silicon wafers and other materials within specified range.

Feature:

• The contact area and measurement pressure are designed in strict accordance with the standard, and various non-standard customizations are supported.
• The measuring head is automatically raised and lowered during the test, effectively avoiding system errors caused by human factor
• The system automatically injects samples, and the relevant parameters such as the sampling step, the number of measuring points and the sampling speed can be set by the user
• Real-time display of analysis data such as the maximum, minimum, average and standard deviation of the measurement results, which is convenient for users to judge
• Equipped with standard gauge block for system calibration to ensure test accuracy and data consistency
• The system supports many practical functions such as real-time data display, automatic statistics, printing, etc., to obtain test results conveniently and quickly
• The system is controlled by a microcomputer, equipped with a liquid crystal display, a menu interface and a PVC operation panel, which is convenient for users to conduct test operations and data viewing
• Standard USB interface, convenient for external connection and data between the system and the computer

Parameter:
